| MOQ: | 1000 kg |
| Standard Packaging: | 1.04KG/pc; 25KG/carton; 16tons/20ft container; 24tons/40ft container |
| Delivery Period: | 7-10 working days |
| Payment Method: | T/T, D/P, L/C, D/A |
| Supply Capacity: | 8000 TON per Month |

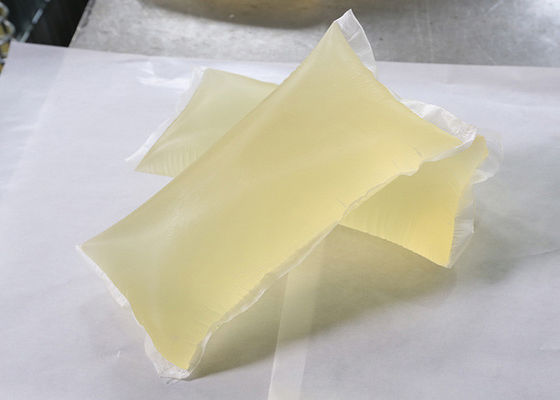

Good Die-Cutting Hot Melt PSA Glue For Production Of Labelstock Sticker
DESCRIPTION
TPR Thermoplastic elastomer pressure sensitive adhesive
PHYSICAL PROPERTIES
|
Composition
|
Synthetic resin
|
|
Appearance
|
Yellow translucent
|
|
R&B softening point
|
approx.100°C
|
|
Brookfield viscosity
|
165℃-------about 7500 cps
|
|
175℃-------about 5500 cps |
|
|
185℃-------about 4200 cps
|
|
|
Density
|
0.98 g /cm3
|
|
TG point
|
approx.2°C
|
|
Toxicity
|
none
|
TECHNICAL DATA
|
Pressure sensitive properties of
23g/m2-coating on 21g/m2 polyester film
(23±2℃,50±10%Rh) |
|
180°C peel adhesion to steel (FTM 1)
After 20 min: 24-30N/inch After 24 H: 24-30N/inch |
|
Loop tack on steel (FTM 9)
24-30N/inch |
|
Rolling ball (PSTC 6)
Approx 20cm |
|
Shear adhesion to steel (FTM 8)
23°C :>24H with 1 kg/inch2 40°C :4H with 1 kg/inch2 |
|
Shear adhesion failure temperature om steel (SAFT)
0.5°C/min;0.5kg/inch2,approx 68°C |
APPLICATION INSTRUCTIONS
Its adhesion performance will be affected by substrates, release paper and application environment, so trial run is necessary to determine whether the adhesive is suitable.
There should be no dust or oil on the surface of substrates and release paper, also the substrates and release paper should be treated to constant temperature and humidity before application.
Application methods: roller or spray
Operating temperature: the 150-170℃, is recommended in the glue viscosity can be adjusted by the temperature of summer appropriate Down 5-10 ℃, raised 5-10 ℃ in winter. Application-temperature of the labels between +5°C and 50°C,Temperature resistance of the applied label from -20°C to +60°C
PACKAGING AND STORAGE
Shelf Life: 24 Months in dry and cool environment
Packaging: 25kg/Box
CLEANING
The residual adhesive can be rubbed off by wooden shovel before it is totally cooled.
Cooled glue can be cleaned with specialized detergent. Applicators can be cleaned with mineral oil at 120℃, then purged with hot melt adhesive.
WARNINGS
Don’t mix the product with other adhesives.
Keep the adhesive containers covered to avoid dust or contamination.
Stop heating if you don’t use it for a long time to avoid the carbonization of the adhesive.
Wear safety glasses, safety gloves and safety clothes when using hot melt adhesive to avoid scald.
Company Information
Shanghai Jaour attracts a team of experienced elitists in hot melt adhesive industry. The company is specialized in
pressure sensitive hot melt adhesive for nonwoven disposables, medicals, industrial tapes & labels, and waterproofing
membranes, including the research & development, manufacturing, sales and after-sales services.
1) Rich experience in OEM & ODM service, our customers cover more than 50 countries.
2) Professional management team and standard quality control procedures.
3) Modern facilities and hygenic standard workshop.
4) Advanced production equipments.
5) We own 3 branch factories.
7) We have enjoyed an excellent reputation from 13 Years' successful business experience.
